Preheated activation type electronic ballast-T5 series-4 lamp
Click image to view full sizeItem-Name:
Preheated activation type electronic ballast-T5 series-4 lamp
Preheated activation type electronic ballast-T5 series-4 lamp
More-Details:

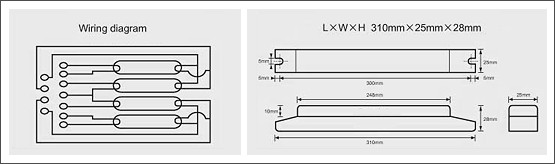

Hole diameter：300mm
T5 4 lamp series（T5 light tube suitable）
Model | Input Voltage(V) | Input Current(A) | Input Power(W) | Lamp Current(A) | Power Factor(%) | Lamps Type(W) |
BM-UT50144 | 110 / 220 | 0.58 ~ 0.23 | 50 / 64 | 0.17 | 99 | T5 14 |
BM-CT50144 | 277 | 0.18 / 0.23 | 48 / 64 | 0.17 | 99 | T5 14 |
Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.
More Products
Preheated activation type electronic ballast-FL/T8 series-single lamp
Hole diameter：300mm FL series（T8/T9 light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BM-UFL0321 110 / 220 0.35 ~ 0.175 38 0.26 99 T8 32 BM-UFL0401A 110 / 220 0.36 ~ 0.09 20 / 34 / 38 / 40 0.3 98 T8 18 / 20 / 36 / 40 T9 18 / 20 / 38 / 40 BM-UFL0581 110 / 220 0.54 ~0.27 58 0.45 99 T8 58 PL 55 BM-EFL0381 220/277 0.19/0.15 41 0.36 99 T8 38 BM-CFL0321 277 0.135 37 0.26 99 T8 32 BM-CFL0401 277 0.15 40 0.31 99 T8 36 / 40 T9 38 / 40 BM-CFL0581 277 0.22 61 0.5 99 T8 58 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.
Preheated activation type electronic ballast-FL/T8 series-2 lamp
Hole diameter：300mm FL series（T8/T9 light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BM-UFL0202 110 / 220 0.36 ~ 0.18 40 0.32 99 T8 18 T9 18 / 20 BM-UFL0322 110 / 220 0.6 ~ 0.3 67 0.22 99 T8 32 BM-UFL0402 110 / 220 0.7 ~ 0.35 76 0.3 98 T8 38 / 40 T9 38 / 40 BM-AFL0582 110 1 110 0.42 99 T8 58 PL55 BM-BFL0402 220 0.28 / 0.35 61 / 76 0.3 99 T8 30 / 38 / 40 T9 30 / 38 / 40 BM-BFL0582 220 0.49 108 0.43 99 T8 58 PL55 BM-EFL0382 220/277 0.36/0.29 80 0.36 99 T8 38 BM-CFL0322 277 0.26 72 0.26 99 T8 32 BM-CFL0402 277 0.28 76 0.31 99 T8 38 / 40 T9 38 / 40 BM-CFL0582 277 0.42 114 0.47 99 T8 58 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.
Preheated activation type electronic ballast-FL/T8 series-3 lamp
Hole diameter：348mm FL series（T8/T9 light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BM-AFL0403 110 1.04 114 0.3 99 T8 38 T9 38 / 40 BM-AFL0453 110 1.16 126 0.29 99 T8 45 BM-BFL0323 220 0.48 105 0.23 99 T8 32 BM-BFL0403 220 0.4 / 0.52 87 / 114 0.3 99 T8 30 / 38 T9 30 / 38 / 40 BM-BFL0383 220 0.42 114 0.34 99 T8 38 BM-CFL0323 277 0.39 108 0.26 99 T8 32 BM-CFL0383 277 0.42 114 0.34 99 T8 38 BM-CFL0403 277 0.39 / 0.41 108 / 114 0.31 99 T8 30 / 38 T9 30 / 38 / 40 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.
Preheated activation type electronic ballast-FL/T8 series-4 lamp
Hole diameter：300mm FL series（T8/T9 light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BM-UFL0164 110 / 220 0.67 ~ 0.2 44 / 72 0.24 98 T8 10 T8 16 BM-UFL0204 110 / 220 0.7 ~ 0.35 76 0.3 98 T8 18 T9 18 / 20 BM-CFL0164 277 0.26 72 0.27 99 T8 16 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.
Preheated activation type electronic ballast-T5 series-single lamp
Hole diameter：300mm T5 single lamp series（T5 light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BM-UT50351 110 / 220 0.38 ~ 0.08 18 / 25 / 34 / 42 0.17 98 T5 14 / 21 / 28 / 35 BM-UT50391 110 / 220 0.39 ~ 0.12 26 / 42 0.3 99 T5 24 / 39 BM-UT50541 110 / 220 0.55 ~ 0.28 61 0.44 99 T5 54 BM-CT50351 277 0.09 / 0.12 / 0.14 24 / 32 / 40 0.17 98 T5 21 / 28 / 35 BM-CT50541 277 0.21 58 0.44 99 T5 54 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.
Preheated activation type electronic ballast-T5 series-2 lamp
Hole diameter：300mm T5 Two lamp series（T5 light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BM-UT50282 110 / 220 0.58 ~ 0.22 48 / 64 0.17 99 T5 21 / 28 BM-UT50352 110 / 220 0.71 ~ 0.35 78 0.15 99 T5 35 BM-UT50392 110 / 220 0.7 ~ 0.24 52 / 78 0.29 98 T5 24 / 39 BM-AT50542 110 1.02 110 0.35 99 T5 54 BM-BT50542 220 0.51 114 0.40 99 T5 54 BM-CT50282 277 0.23 64 0.17 99 T5 28 BM-CT50352 277 0.28 78 0.17 99 T5 35 BM-CT50542 277 0.42 114 0.42 99 T5 54 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.
Preheated activation type electronic ballast-T5 series-3 lamp
Hole diameter：348mm T5 3 lamp series（T5 light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BM-AT50283 110 0.84 92 0.17 99 T5 28 BM-BT50283 220 0.42~0.31 68/91 0.17 99 T5 21/28 BM-CT50283 277 0.34 94 0.17 99 T5 28 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.
